Getting Started: PyProcar’s dosplot Function

This tutorial provides a comprehensive introduction to plotting density of states (DOS) using PyProcar’s dosplot function. You’ll learn about all the main arguments, visualization modes, caching options, and plotting configurations.

What You’ll Learn

• Core ``dosplot`` arguments and their purposes

• Different visualization modes for DOS analysis

• Caching functionality to speed up repeated plotting

• Plotting configurations for customizing appearance

• Best practices for different analysis scenarios

Prerequisites

• Basic understanding of electronic density of states

• PyProcar installed in your environment

• VASP calculation data (we’ll use SrVO3 example data)

Overview of dosplot Function

The dosplot function is PyProcar’s main tool for density of states visualization. Its basic syntax is:

pyprocar.dosplot(
    code='vasp',           # DFT code used
    dirname='.',           # Directory with calculation files
    mode='plain',          # Visualization mode
    fermi=None,           # Fermi energy
    # ... many other options
)

1. Setup and Data Loading

Let’s start by importing PyProcar and loading example data. We’ll use SrVO3 band structure data from a VASP calculation to demonstrate all the features.

# Import required libraries
from pathlib import Path
import pyprocar

CURRENT_DIR = Path(".").resolve()
REL_PATH = "data/examples/dos/non-spin-polarized"
pyprocar.download_from_hf(relpath=REL_PATH, output_path=CURRENT_DIR)
DATA_DIR = CURRENT_DIR / REL_PATH
print(f"Data downloaded to: {DATA_DIR}")

Data downloaded to: C:\Users\lllang\Desktop\notebooks\Notebook\01 - Projects\Pyprocar\pyprocar\examples\01-dos\data\examples\01-dos\non-spin-polarized

c:\Users\lllang\miniconda3\envs\pyprocar\lib\site-packages\huggingface_hub\file_download.py:143: UserWarning: `huggingface_hub` cache-system uses symlinks by default to efficiently store duplicated files but your machine does not support them in C:\Users\lllang\.cache\huggingface\hub\datasets--lllangWV--pyprocar_test_data. Caching files will still work but in a degraded version that might require more space on your disk. This warning can be disabled by setting the `HF_HUB_DISABLE_SYMLINKS_WARNING` environment variable. For more details, see https://huggingface.co/docs/huggingface_hub/how-to-cache#limitations.
To support symlinks on Windows, you either need to activate Developer Mode or to run Python as an administrator. In order to activate developer mode, see this article: https://docs.microsoft.com/en-us/windows/apps/get-started/enable-your-device-for-development
  warnings.warn(message)

2. Core Arguments of dosplot

Before exploring different modes, let’s understand the essential arguments of the dosplot function:

Essential Arguments

Argument	Type	Description	Example
code	str	DFT software used	'vasp', 'qe', 'abinit'
dirname	str	Path to calculation files	'.', '/path/to/data'
mode	str	Visualization mode	'plain', 'parametric', 'stack', 'overlay'
fermi	float	Fermi energy (eV)	5.599

Optional Arguments

Argument	Type	Description	Default
atoms	list	Atom indices for projection	None
orbitals	list	Orbital indices for projection	None
spins	list	Spin channels	None
elimit	list	Energy range [min, max]	None
dos_limit	list	DOS range [min, max]	None
savefig	str	Save plot filename	None
orientation	str	Plot orientation	'horizontal'

3. Basic Usage - Plain Mode

The plain mode is the simplest way to visualize density of states. It shows the total DOS as a clean line without projections.

# Basic dosplot usage - showing essential arguments
pyprocar.dosplot(
    code="vasp",           # Required: DFT software used
    dirname=DATA_DIR,      # Required: Directory with calculation files
    mode="plain",          # Visualization mode
    fermi=5.3017,          # Fermi energy in eV (shifts energy reference)
    elimit=[-6, 4],        # Energy range around Fermi level
)

print("✅ Basic DOS plot created with essential arguments only")

If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in plain mode

✅ Basic DOS plot created with essential arguments only

4. Visualization Modes Overview

PyProcar offers several visualization modes for different DOS analysis needs:

Mode	Purpose	Key Arguments	Use Case
'plain'	Total DOS only	None extra	Publication plots, general overview
'parametric'	Projected DOS with color/line weight	atoms, orbitals, spins	Analyzing specific contributions
'parametric_line'	Projected DOS as lines	atoms, orbitals, spins	Clean orbital/atomic contributions
'stack'	Stacked area plot	items	Component contributions
'stack_species'	Stack by atomic species	orbitals, spins	Multi-element systems
'stack_orbitals'	Stack by orbital type	atoms, spins	Orbital analysis
'overlay'	Multiple DOS overlays	items	Comparing projections
'overlay_species'	Overlay by species	orbitals, spins	Species comparison
'overlay_orbitals'	Overlay by orbitals	atoms, spins	Orbital comparison

5. Parametric Mode - Projected Density of States

Parametric mode shows atomic/orbital contributions through line weight or color intensity in the DOS.

Orbital Indexing Reference

• s: 0

• p: 1, 2, 3 (px, py, pz)

• d: 4, 5, 6, 7, 8 (d orbitals)

• f: 9, 10, 11, 12, 13, 14, 15 (f orbitals)

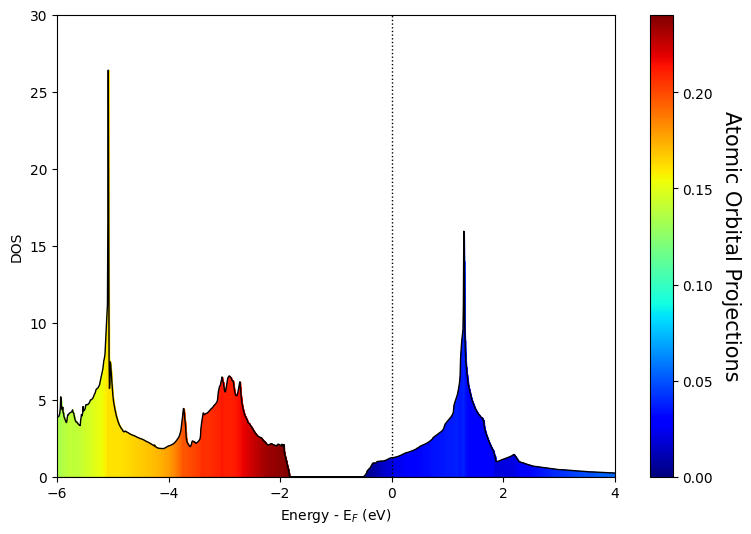

# Parametric mode requires projection arguments
pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="parametric",
    fermi=5.3017,
    elimit=[-6, 4],
    dos_limit=[0,30],
    atoms=[2,3,4],                # Project onto the Oxygen atoms
    orbitals=[1,2,3],             # p orbitals (indices 1-3)
)

print("📊 Parametric mode: Line weight/color shows p-orbital contribution strength")

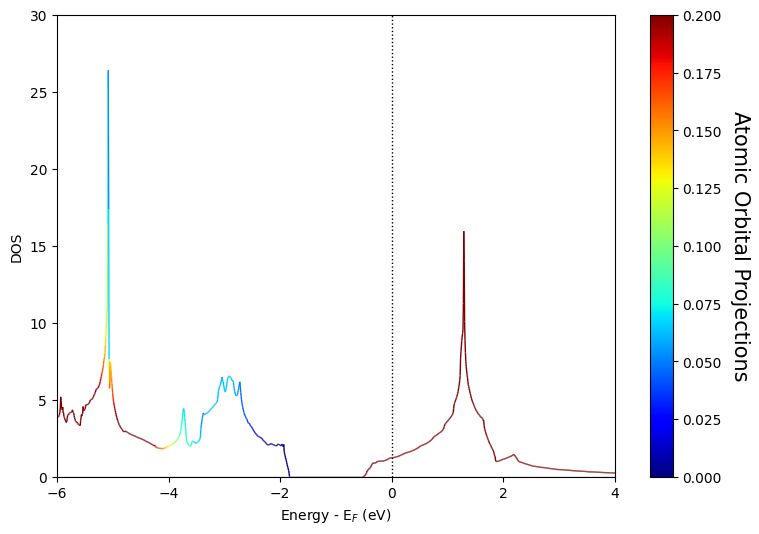

# Parametric line mode for cleaner visualization
pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="parametric_line",
    fermi=5.3017,
    elimit=[-6, 4],
    dos_limit=[0,30],
    atoms=[1],                    # Project onto the V atom
    orbitals=[4,5,6,7,8],         # d orbitals (indices 4-8)
)

print("📊 Parametric line mode: Shows d-orbital contributions as distinct lines")

If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in parametric mode

📊 Parametric mode: Line weight/color shows p-orbital contribution strength
If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in parametric line mode

📊 Parametric line mode: Shows d-orbital contributions as distinct lines

6. Stack Modes - Component Analysis

Stack modes are particularly useful for DOS analysis as they show how different components contribute to the total DOS. The area of each component is proportional to its contribution.

Stack Mode Benefits

1. Visual composition: See exactly how much each component contributes

2. Area proportional: Stack height = contribution magnitude

3. Total preservation: Stack top = total DOS

# Stack by species - shows contribution of each element
pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="stack_species",
    fermi=5.3017,
    elimit=[-6, 4],
    dos_limit=[0,30],
    orbitals=[1,2,3],  # Focus on p orbitals
)

print("📚 Stack by species: Shows how each element contributes to p-orbital DOS")

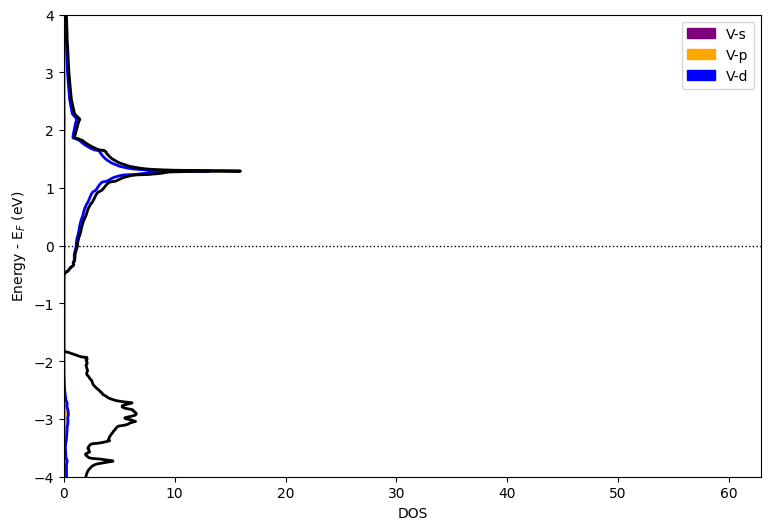

# Stack by orbitals - shows contribution of each orbital type
pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="stack_orbitals",
    fermi=5.3017,
    elimit=[-6, 4],
    dos_limit=[0,30],
    atoms=[1],  # Focus on V atom

)

print("🧩 Stack by orbitals: Shows s, p, d orbital contributions from V atom")

If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in stack species mode
The plot only considers orbitals [1, 2, 3]

📚 Stack by species: Shows how each element contributes to p-orbital DOS
If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in stack orbitals mode
The plot only considers atoms ['V']

🧩 Stack by orbitals: Shows s, p, d orbital contributions from V atom

7. Overlay Modes - Comparing Multiple Contributions

Overlay modes allow you to compare different contributions on the same plot. Each contribution gets a different color and appears in the legend, making it easy to identify which peaks correspond to which components.

Available Overlay Modes

• ``overlay_species``: Compare different atomic species

• ``overlay_orbitals``: Compare different orbital types

• ``overlay``: Custom user-defined comparisons using items dictionary

# overlay_species: Compare different atomic species
pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="overlay_species",
    fermi=5.3017,
    elimit=[-6, 4],
    dos_limit=[0,30],
    orbitals=[1,2,3],  # p orbitals
)

print("🔴🟢🔵 Overlay species: Each element gets a unique color")

# overlay_orbitals: Compare different orbital types
pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="overlay_orbitals",
    fermi=5.3017,
    elimit=[-6, 4],
    dos_limit=[0,30],
    atoms=[1],  # V atom
)

print("🟡🟠🟣 Overlay orbitals: Each orbital type gets a unique color")

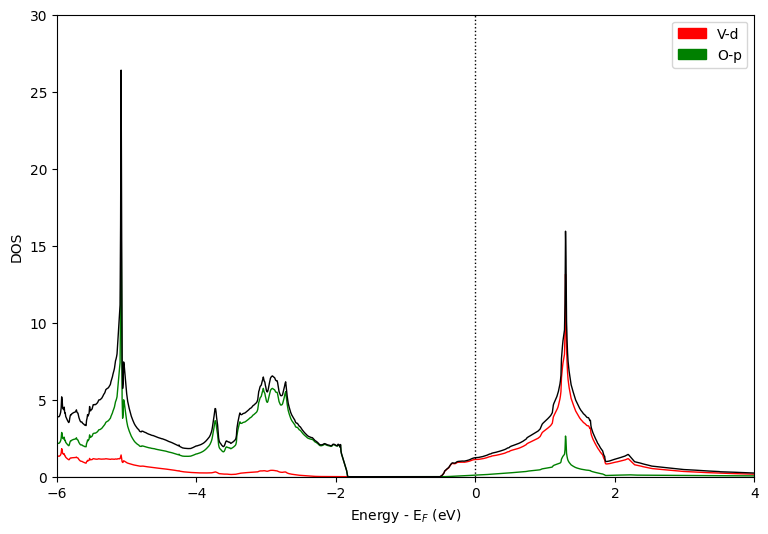

# overlay: Custom comparisons using the items argument
items = {
    "V": [1,2,3],        # s orbital
    "O": [1,2,3],   # p orbitals
    "V": [4,5,6,7,8] # d orbitals
}


pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="overlay",
    fermi=5.3017,
    elimit=[-6, 4],
    dos_limit=[0,30],
    items=items,  # Custom groupings
)

print("🎨 Overlay mode: Custom groups with unique colors and legend")

If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in overlay species mode
The plot only considers orbitals [1, 2, 3]

🔴🟢🔵 Overlay species: Each element gets a unique color
If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in overlay orbitals mode
The plot only considers atoms ['V']

🟡🟠🟣 Overlay orbitals: Each orbital type gets a unique color
If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in overlay mode

🎨 Overlay mode: Custom groups with unique colors and legend

8. DOS Normalization - Scaling for Comparison

DOS normalization is crucial when comparing different systems or when you want to focus on the shape rather than absolute magnitude of the DOS. PyProcar provides two normalization modes through the normalize_dos_mode parameter.

Normalization Modes

Mode	Description	Use Case
'max'	Normalizes by maximum DOS value	Compare DOS shapes, focus on relative peaks
'integral'	Normalizes by integral (total electrons)	Compare per-electron contributions

When to Use Normalization

• Comparing different systems: Different supercell sizes, different materials

• Focus on DOS shape: When absolute magnitude is less important than peak positions

• Per-electron analysis: Understanding contribution per electron rather than per unit cell

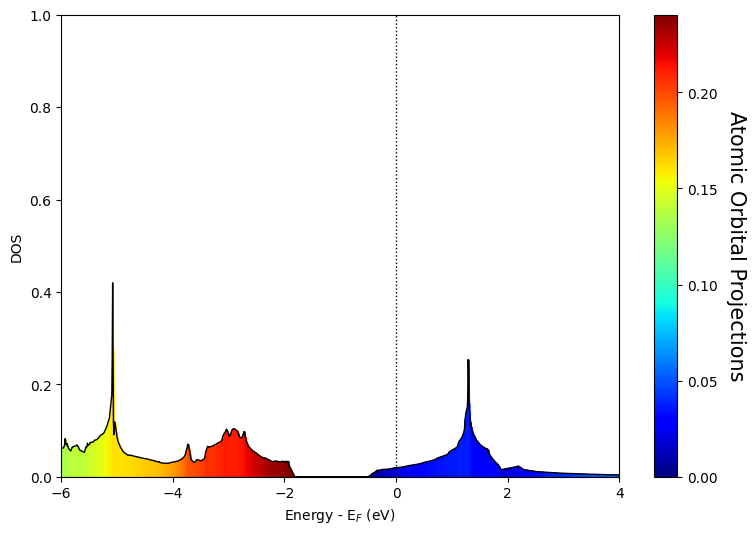

# Example 1: Max normalization - scales DOS so maximum value = 1
print("Max normalization - DOS scaled to maximum value of 1:")
pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="parametric",
    fermi=5.3017,
    elimit=[-6, 4],
    atoms=[2,3,4],
    orbitals=[1,2,3],  # p orbitals
    normalize_dos_mode="max",  # Normalize by maximum value
)

print("🔝 Max normalization: Each species DOS scaled to its own maximum")

# Example 2: Integral normalization - scales DOS by total number of electrons
print("\\nIntegral normalization - DOS scaled by number of electrons:")
pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="parametric",
    fermi=5.3017,
    elimit=[-6, 4],
    atoms=[2,3,4],
    orbitals=[1,2,3],  # p orbitals
    normalize_dos_mode="integral",  # Normalize by integral (electron count)
)

print("∫ Integral normalization: Shows contribution per electron")

Max normalization - DOS scaled to maximum value of 1:
If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in parametric mode

🔝 Max normalization: Each species DOS scaled to its own maximum
\nIntegral normalization - DOS scaled by number of electrons:
If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in parametric mode

∫ Integral normalization: Shows contribution per electron

9. Plotting Configurations - Customizing Appearance

PyProcar provides extensive options to customize DOS plot appearance through various configuration arguments.

Key Configuration Arguments

Category	Arguments	Description
Labels	labels, x_label, y_label	Plot labels and axis titles
Energy	fermi, elimit, dos_limit	Energy reference and plot ranges
Colors	colors, spin_colors	Line colors and spin differentiation
Lines	linewidth, linestyle	Line appearance
Layout	orientation, figure_size	Plot orientation and dimensions
Output	savefig, dpi	Save options

pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="plain",
    fermi=5.3017,
    print_plot_opts=True
)

If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
plot_type : PlotType.DENSITY_OF_STATES
custom_settings : {}
modes : ['plain', 'parametric', 'parameteric_line', 'stack', 'stack_orbitals', 'stack_species', 'overlay', 'overlay_orbitals', 'overlay_species']
cmap : jet
colors : ['red', 'green', 'blue', 'cyan', 'magenta', 'yellow', 'orange', 'purple', 'brown', 'navy', 'maroon', 'olive']
colorbar_title : Atomic Orbital Projections
colorbar_title_size : 15
colorbar_title_padding : 20
colorbar_tick_labelsize : 10
fermi_color : black
fermi_linestyle : dotted
fermi_linewidth : 1
figure_size : (9, 6)
font : Arial
font_size : 16
grid : False
grid_axis : both
grid_color : grey
grid_linestyle : solid
grid_linewidth : 1
grid_which : major
draw_baseline : True
baseline_params : {'color': 'black', 'alpha': 0.3, 'linestyle': 'solid', 'linewidth': 1}
legend : True
linestyle : ['solid', 'dashed']
linewidth : [1, 1]
marker : ['o', 'v', '^', 'D']
markersize : [0.2, 0.2]
opacity : [1.0, 1.0]
plot_bar : True
plot_color_bar : True
plot_total : True
savefig : None
spin_colors : ['black', 'red']
spin_labels : ['$\\uparrow$', '$\\downarrow$']
title : None
verbose : True
weighted_color : True
weighted_width : False
clim : None
stack_y_label : DOS
x_label :
y_label :
dpi : 300
x_label_params : {}
y_label_params : {}
legend_params : {}
major_x_tick_params : {}
minor_x_tick_params : {}
major_y_tick_params : {}
minor_y_tick_params : {}
____________________________________________________________________________________________________
Plotting DOS in plain mode

(<Figure size 900x600 with 1 Axes>,
 <Axes: xlabel='Energy - E$_F$ (eV)', ylabel='DOS'>)

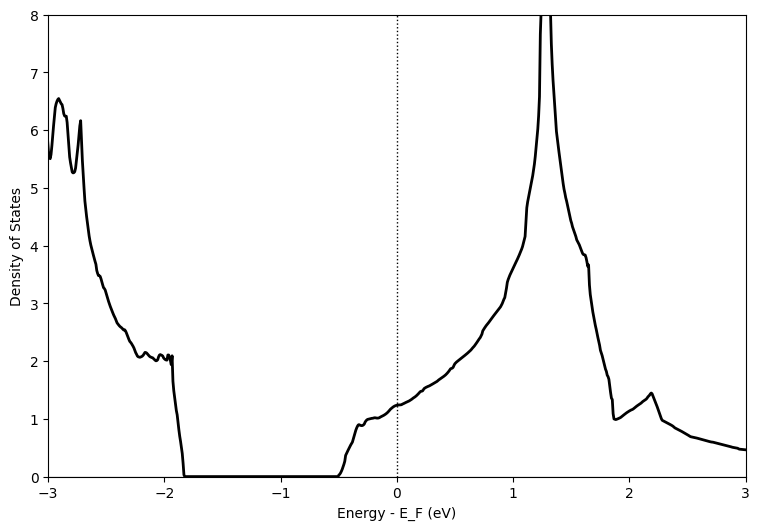

# Example 1: Customizing energy range and labels
pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="plain",
    fermi=5.3017,
    elimit=[-3, 3],           # Energy range: -3 to +3 eV around Fermi
    dos_limit=[0, 8],         # DOS range
    x_label="Energy - E_F (eV)",
    y_label="Density of States",
    linewidth=[2]
)

print("📊 Customized energy range, labels, and colors")

# Example 2: Customizing orientation and colors for overlay plot
pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="overlay_orbitals",
    fermi=5.3017,
    elimit=[-4, 4],
    atoms=[1],                # V atom
    orientation="vertical",   # Vertical orientation
    colors=["purple", "orange", "blue", "green"],
    linewidth=[2, 2, 2, 2],
)

print("🔄 Vertical orientation with custom colors and line widths")

print("🎨 Configuration options allow full customization of DOS plot appearance")

If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in plain mode

📊 Customized energy range, labels, and colors
If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in overlay orbitals mode
The plot only considers atoms ['V']
Setting xlabel and ylabel for vertical orientation

🔄 Vertical orientation with custom colors and line widths
🎨 Configuration options allow full customization of DOS plot appearance

10. Caching and Performance

PyProcar automatically caches parsed DOS data to speed up repeated plotting with different parameters. This is especially useful when experimenting with different visualization options.

How Caching Works

1. First run: PyProcar reads and parses DOS data, saves cache files

2. Subsequent runs: Loads cached data (much faster)

3. Cache control: Use use_cache=True/False to control caching

# Demonstration of caching - first run parses data
print("First run with caching (data will be parsed and cached):")
pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="plain",
    fermi=5.3017,
    elimit=[-4, 4],
    dos_limit=[0,30],
    use_cache=True,  # Enable caching (default)
)

First run with caching (data will be parsed and cached):
If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in plain mode

(<Figure size 900x600 with 1 Axes>,
 <Axes: xlabel='Energy - E$_F$ (eV)', ylabel='DOS'>)

11. Saving and Output Options

PyProcar provides several options for saving DOS plots and controlling output quality.

Save Options

# Saving DOS plots with different formats and quality
pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="plain",
    fermi=5.3017,
    elimit=[-6, 4],
    savefig=DATA_DIR / "dos_plain.png",  # Save as PNG
    dpi=300
)

# Alternative: Save as vector format (better for publications)
pyprocar.dosplot(
    code="vasp",
    dirname=DATA_DIR,
    mode="stack_species",
    fermi=5.3017,
    elimit=[-6, 4],
    orbitals=[1,2,3],
    savefig=DATA_DIR / "dos_stack.pdf",  # Vector format
    dpi=300,
)

print("💾 DOS plots saved as:")
print("   - dos_plain.png (300 DPI raster)")
print("   - dos_stack.pdf (vector format)")

If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in plain mode

<Figure size 900x600 with 0 Axes>

If you want more detailed logs, set verbose to 2 or more
____________________________________________________________________________________________________
 ____        ____
|  _ \ _   _|  _ \ _ __ ___   ___ __ _ _ __
| |_) | | | | |_) | '__/ _ \ / __/ _` | '__|
|  __/| |_| |  __/| | | (_) | (_| (_| | |
|_|    \__, |_|   |_|  \___/ \___\__,_|_|
       |___/
A Python library for electronic structure pre/post-processing.

Version 6.4.6 created on Mar 6th, 2025

Please cite:
- Uthpala Herath, Pedram Tavadze, Xu He, Eric Bousquet, Sobhit Singh, Francisco Muñoz and Aldo Romero.,
  PyProcar: A Python library for electronic structure pre/post-processing.,
  Computer Physics Communications 251, 107080 (2020).

- L. Lang, P. Tavadze, A. Tellez, E. Bousquet, H. Xu, F. Muñoz, N. Vasquez, U. Herath, and A. H. Romero,
  Expanding PyProcar for new features, maintainability, and reliability.,
  Computer Physics Communications 297, 109063 (2024).

Developers:
- Francisco Muñoz
- Aldo Romero
- Sobhit Singh
- Uthpala Herath
- Pedram Tavadze
- Eric Bousquet
- Xu He
- Reese Boucher
- Logan Lang
- Freddy Farah

____________________________________________________________________________________________________

            There are additional plot options that are defined in a configuration file.
            You can change these configurations by passing the keyword argument to the function
            To print a list of plot options set print_plot_opts=True

            Here is a list modes : plain , parametric , parameteric_line , stack , stack_orbitals , stack_species , overlay , overlay_orbitals , overlay_species
____________________________________________________________________________________________________
Plotting DOS in stack species mode
The plot only considers orbitals [1, 2, 3]

<Figure size 900x600 with 0 Axes>

💾 DOS plots saved as:
   - dos_plain.png (300 DPI raster)
   - dos_stack.pdf (vector format)

Summary: Mastering dosplot

🎉 Congratulations! You’ve learned the complete dosplot function including:

Core Concepts Covered

1. Essential arguments: code, dirname, mode, fermi

2. Visualization modes: plain, parametric, stack_*, overlay_*

3. DOS normalization: Scale DOS for comparison using normalize_dos_mode

4. Caching: Speed up repeated plotting with use_cache=True

5. Configurations: Customize appearance with colors, labels, limits

6. Output options: Save high-quality DOS plots for publications

💡 Key Takeaways

Concept	Key Points
Arguments	Start with code, dirname, mode, fermi
Modes	Choose based on analysis goal (composition vs. comparison)
Stacking	Use stack modes to see component contributions
Overlaying	Use overlay modes to compare contributions
Normalization	Use normalize_dos_mode='max' or 'integral' for comparison
Caching	Always use use_cache=True for efficiency
Configuration	Customize with elimit, dos_limit, colors, etc.

🚀 Quick Reference

# Basic total DOS
pyprocar.dosplot(code='vasp', dirname='.', mode='plain', fermi=E_F)

# Projected DOS with orbital contributions
pyprocar.dosplot(code='vasp', dirname='.', mode='parametric',
                fermi=E_F, atoms=[0], orbitals=[4,5,6,7,8])

# Stack by species
pyprocar.dosplot(code='vasp', dirname='.', mode='stack_species',
                fermi=E_F, orbitals=[1,2,3])

# Overlay comparison
pyprocar.dosplot(code='vasp', dirname='.', mode='overlay_orbitals',
                fermi=E_F, atoms=[0])

# Normalized DOS for comparison
pyprocar.dosplot(code='vasp', dirname='.', mode='overlay_orbitals',
                fermi=E_F, atoms=[0], normalize_dos_mode='max')
